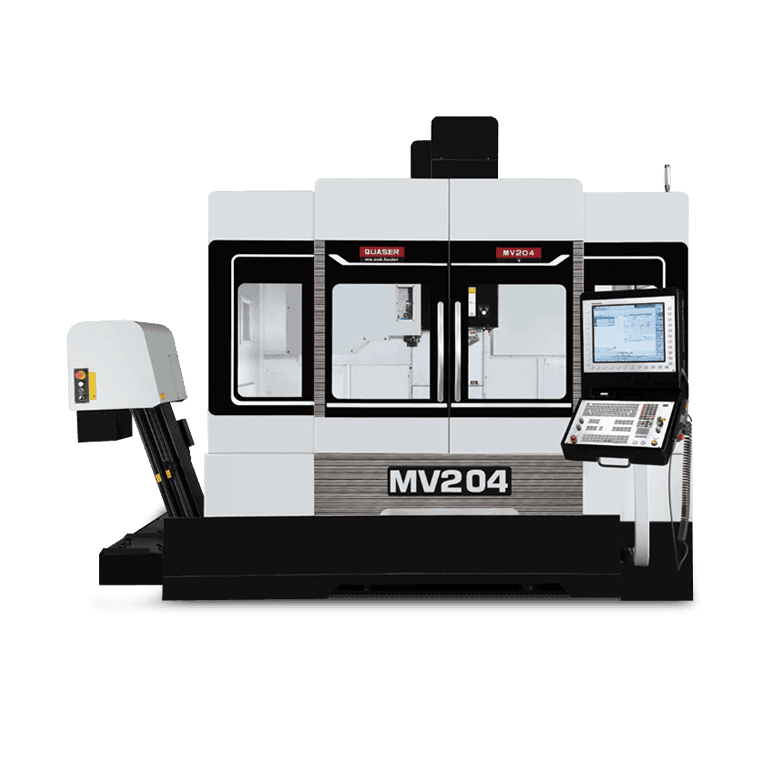

Large work envelope – table size 1,400 × 700 mm and travels X=1,270 mm, Y=700 mm, Z=610 mm provide capacity for medium-to-large components. High load capacity table – up to 1,800 kg table load supports heavy fixtures or large workpieces.
Key Features
- Large work envelope – table size 1,400 × 700 mm and travels X=1,270 mm, Y=700 mm, Z=610 mm
- High load capacity table – up to 1,800 kg table load (standard models) supports heavy fixtures or large workpieces
- Spindle flexibility – BT40/BT50; spindle speeds ranging from 7,500 rpm to 20,000 rpm depending on configuration
- Robust construction – cast-iron frame, wide column, and enhanced saddle support ensure stable machining under load
- High production capability with ATC – standard 30-position magazine with option for larger tool diameters
- Integrated coolant wash and robust chip conveyor systems support longer unattended operation
- Multiple configurations (C / E / V / P) to meet cost and performance requirements
Specifications
Work Range
| Spec |
MV204 |
MV205 |
| Table size |
1,400 × 700 mm |
1,400 × 700 mm |
| Travel X |
1,270 mm |
1,270 mm |
| Travel Y |
700 mm |
700 mm |
| Travel Z |
610 mm |
610 mm |
| Table load capacity |
1,800 kg |
1,800 kg |
Spindle
| Spec |
MV204 |
MV205 |
| Spindle taper |
BT40 (standard) |
BT50 (standard) |
| Spindle speed |
9,000 – 20,000 rpm |
7,500 – 15,000 rpm |
Tool Changer
| Spec |
MV204 |
MV205 |
| Magazine capacity |
30 tools (standard) |
30 tools (standard) |
| Maximum tool diameter |
76.2 mm |
125 mm |
| Max tool diameter (no adjacent) |
125 mm |
200 mm |
| Maximum tool length |
280 mm |
350 mm |
Machine Dimensions
| Spec |
MV204 |
MV205 |
| Machine height |
3,300 mm |
3,350 – 3,650 mm |
| Floor space (W × D) |
30 ATC (MV204C) 3,920 × 3,570 mm |
|
| 30 ATC 3,700 × 3,570 mm |
|
|
| 48 ATC 3,700 × 3,750 mm |
|
|
| 60 ATC 3,700 × 4,050 mm |
30 ATC 3,700 × 3,900 mm |
|
| 40 ATC 3,700 × 4,450 mm |
|
|
Machine Weight
| Configuration |
Weight |
| MV204 |
9,300 – 10,100 kg |
| MV205 |
10,000 – 10,600 kg |
